CBRAM (Conductive Bridging RAM): Advancing the Future of Non-Volatile Semiconductor Memory

ChatGPT Image Jul 15, 2026, 12_00_10 PM

As artificial intelligence (AI), Internet of Things (IoT), edge computing, and high-performance embedded systems continue to evolve, the semiconductor industry requires memory technologies that are faster, more energy-efficient, and capable of retaining data without continuous power.

Conductive Bridging RAM (CBRAM), also known as Conductive-Bridge Resistive Memory (CBRAM), is one of the most promising emerging non-volatile memory technologies. By storing data through the formation and dissolution of conductive metallic filaments, CBRAM offers fast switching speeds, ultra-low power consumption, and excellent scalability, making it a strong candidate for next-generation semiconductor memory applications.

What is CBRAM?

Conductive Bridging RAM (CBRAM) is a non-volatile memory technology that stores information by creating and removing tiny conductive filaments inside a solid electrolyte material.

A typical CBRAM cell consists of:

  • An active metal electrode (commonly silver or copper)
  • A solid electrolyte layer
  • An inert electrode

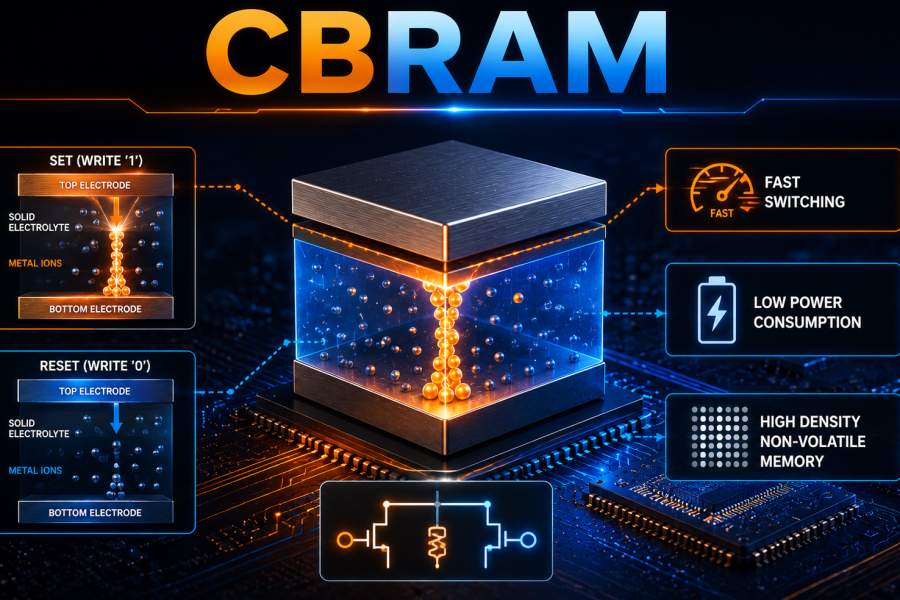

When a voltage is applied, metal ions migrate through the electrolyte and form a nanoscale conductive bridge between the electrodes. This low-resistance state represents one binary value. Reversing the voltage dissolves the filament, returning the device to a high-resistance state that represents the opposite binary value.

Since the conductive state is retained even after power is removed, CBRAM functions as a non-volatile memory.

Why is CBRAM Important for the Semiconductor Industry?

Traditional memory technologies such as DRAM, SRAM, and Flash memory each have trade-offs involving speed, power consumption, endurance, or scalability. CBRAM addresses many of these limitations by combining several desirable characteristics.

Key advantages include:

  • Non-volatile data storage
  • Ultra-low write energy
  • Fast switching speeds
  • High memory density
  • Excellent scalability to future process nodes
  • Simple cell structure
  • Low operating voltage
  • Potential for embedded memory integration

Technology Behind CBRAM

CBRAM integrates advanced semiconductor materials and nanoscale device engineering to achieve reliable memory operation.

Core technologies include:

  • Metal Ion Migration: Controlled movement of silver or copper ions through the solid electrolyte during programming.
  • Conductive Filament Formation: Creation and dissolution of nanoscale metallic bridges that store digital information.
  • Solid Electrolyte Materials: Specialized insulating layers that support controlled ion transport.
  • CMOS Compatibility: Enables integration with conventional semiconductor manufacturing processes.
  • Advanced Material Engineering: Improves switching reliability, endurance, retention, and device uniformity for commercial applications.

Applications

CBRAM is being explored for a wide range of advanced semiconductor applications, including:

  • Embedded non-volatile memory (eNVM)
  • Artificial Intelligence (AI) hardware
  • Edge computing devices
  • Internet of Things (IoT) systems
  • Wearable electronics
  • Industrial automation
  • Automotive electronics
  • Neuromorphic computing
  • Low-power microcontrollers
  • Secure data storage applications

Conclusion

Conductive Bridging RAM (CBRAM) represents an exciting advancement in semiconductor memory by combining non-volatility, low power consumption, fast operation, and excellent scalability within a compact device structure. Its unique mechanism of storing data through conductive filament formation offers an innovative alternative to conventional memory technologies.
