As the demand for faster computing, artificial intelligence (AI), edge devices, and energy-efficient electronics continues to grow, the semiconductor industry is exploring memory technologies that can overcome the limitations of conventional RAM and flash storage.
Magnetoresistive Random Access Memory (MRAM) is one of the most promising next-generation non-volatile memory technologies. By using magnetic states instead of electrical charges to store data, MRAM offers an attractive combination of speed, endurance, and low power consumption, making it a strong candidate for future semiconductor applications.
What is MRAM?
Magnetoresistive Random Access Memory (MRAM) is a non-volatile memory technology that stores information using the magnetic orientation of tiny magnetic layers rather than electrical charges.

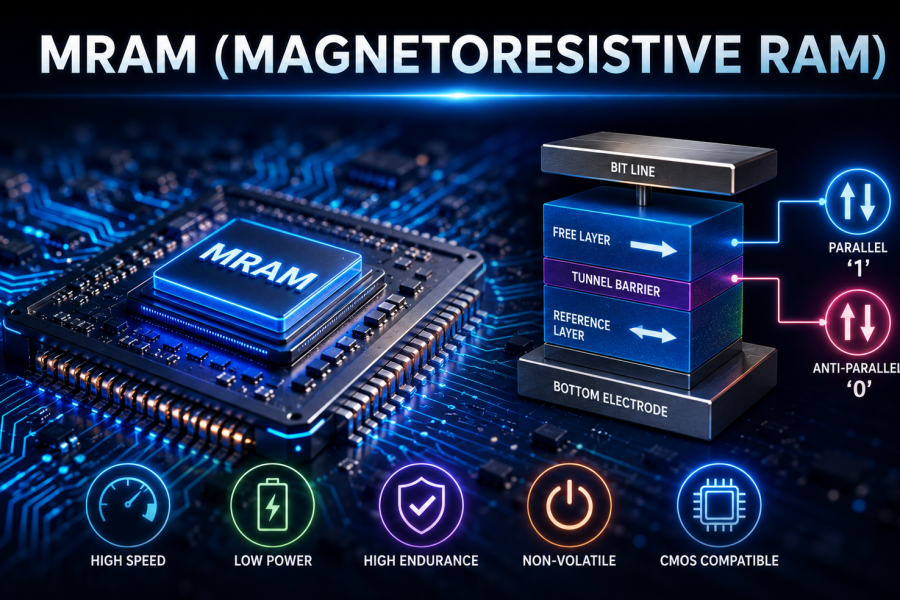

The core element of MRAM is the Magnetic Tunnel Junction (MTJ), which consists of two ferromagnetic layers separated by an ultra-thin insulating barrier. One magnetic layer has a fixed orientation, while the other can switch between different magnetic states.
Depending on whether the magnetic layers are aligned or opposite, the electrical resistance changes, allowing the system to represent binary data (0s and 1s).
Unlike traditional DRAM, MRAM retains stored data even when power is removed, eliminating the need for continuous refresh operations.
Why is MRAM Important for the Semiconductor Industry?
Traditional memory technologies each have their strengths and limitations. DRAM offers high speed but loses data without power, while Flash memory retains data but has slower write speeds and limited endurance.
MRAM bridges these gaps by offering several significant advantages:
- Non-volatile data storage
- High-speed read and write operations
- Extremely high write endurance
- Low standby power consumption
- Excellent reliability and data retention
- Fast system startup without lengthy boot times
These features make MRAM an attractive solution for applications where performance, energy efficiency, and reliability are equally important.
Technology Behind MRAM
Modern MRAM combines advanced semiconductor manufacturing with spintronics—a field that utilizes the intrinsic spin of electrons in addition to their electrical charge.
Key technologies include:
- Spin-Transfer Torque (STT-MRAM): Uses electron spin to switch magnetic states efficiently while reducing power consumption.
- Spin-Orbit Torque (SOT-MRAM): A next-generation approach that enables even faster switching speeds and improved endurance.
- Magnetic Tunnel Junction (MTJ): The fundamental storage element responsible for reading and writing magnetic data.
- CMOS Integration: Allows MRAM to be fabricated alongside conventional semiconductor logic using advanced manufacturing processes.
These innovations make MRAM increasingly suitable for high-performance and embedded memory applications.
Applications
MRAM is finding growing adoption across a wide range of semiconductor applications, including:
- AI accelerators and machine learning hardware
- Automotive electronics and autonomous systems
- Industrial embedded controllers
- Internet of Things (IoT) devices
- Aerospace and defense electronics
- Enterprise storage systems
- Edge computing platforms
- High-performance microcontrollers
Conclusion
Magnetoresistive RAM represents a major advancement in semiconductor memory innovation. By combining non-volatility, high speed, exceptional endurance, and low power consumption, MRAM addresses many of the limitations associated with conventional memory technologies.
With the rapid expansion of AI, edge computing, automotive electronics, and advanced embedded systems, MRAM is well-positioned to become a key building block in the future of semiconductor memory. As research and manufacturing continue to advance, it is expected to play a significant role in shaping the next generation of intelligent, high-performance electronic devices.
