As semiconductor devices continue to scale toward nanometer process technologies, traditional bulk CMOS transistors face increasing challenges such as leakage current, short-channel effects, power consumption, and reduced switching performance. To overcome these limitations, the semiconductor industry has adopted innovative device architectures that improve transistor efficiency while maintaining compatibility with advanced manufacturing processes.
Silicon-on-Insulator (SOI) MOSFET technology is one of the most important advancements in modern semiconductor devices. By introducing an insulating layer beneath the active silicon, SOI MOSFETs significantly improve electrical performance, reduce power consumption, and enhance reliability. Today, SOI technology is widely used in high-performance processors, RF circuits, automotive electronics, and low-power integrated circuits.
What is an SOI MOSFET?
An SOI MOSFET (Silicon-on-Insulator Metal-Oxide-Semiconductor Field-Effect Transistor) is a transistor fabricated on a Silicon-on-Insulator (SOI) wafer instead of a conventional bulk silicon wafer.

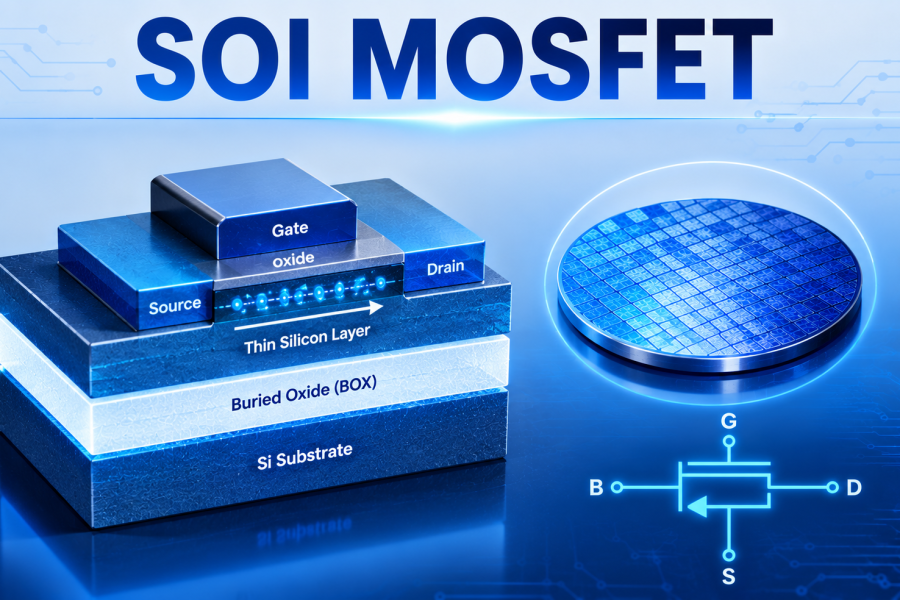

An SOI wafer consists of three primary layers:
- A thin active silicon layer where transistors are fabricated
- A Buried Oxide (BOX) insulating layer
- A silicon substrate beneath the oxide layer
Why is SOI MOSFET Technology Important?
As transistor dimensions continue to shrink, maintaining high performance while minimizing power consumption becomes increasingly difficult.
SOI MOSFET technology offers several important advantages:
- Reduced leakage current
- Lower power consumption
- Faster switching speed
- Reduced parasitic capacitance
- Improved short-channel effect control
- Higher operating frequency
- Better thermal performance
- Improved radiation resistance
- Enhanced device reliability
- Greater energy efficiency
Technology Behind SOI MOSFETs
SOI MOSFET technology combines advanced semiconductor materials and fabrication techniques to improve transistor performance.
Key technologies include:
- Silicon-on-Insulator (SOI) Wafers: A thin silicon layer is separated from the substrate by a buried oxide (BOX) layer, providing electrical isolation.
- Buried Oxide (BOX): Minimizes parasitic capacitance, reduces substrate leakage, and improves switching efficiency.
- Fully Depleted (FD-SOI) Architecture: Offers superior electrostatic control over the transistor channel, resulting in lower leakage and better scalability.
- Advanced CMOS Fabrication: Standard semiconductor processes such as lithography, ion implantation, deposition, etching, and metallization are adapted for SOI wafers.
- Body Biasing Technology: FD-SOI supports dynamic body biasing, allowing designers to optimize transistor performance or reduce power consumption depending on application requirements.
Applications
SOI MOSFET technology is widely used across many advanced semiconductor applications, including:
- Mobile System-on-Chip (SoC) devices
- Artificial Intelligence (AI) processors
- High-Performance Computing (HPC) systems
- RF and 5G communication circuits
- Automotive semiconductor electronics
- Internet of Things (IoT) devices
- Aerospace and defense electronics
- Industrial automation systems
- Image sensors
- Low-power embedded processors
Conclusion
SOI MOSFET technology has become a significant milestone in semiconductor device engineering by addressing many of the limitations of conventional bulk CMOS transistors. Through the use of an insulating buried oxide layer, SOI MOSFETs deliver lower leakage currents, faster switching speeds, improved thermal characteristics, and greater energy efficiency.
