As semiconductor technology continues to scale toward smaller process nodes, conventional transistor architectures face increasing challenges in power consumption, performance, leakage, and electrostatic control. Multi-Bridge-Channel Field-Effect Transistor (MBCFET) technology is an advanced transistor architecture designed to address these challenges and support continued semiconductor scaling.

MBCFET builds on the concepts introduced by FinFET and Gate-All-Around (GAA) transistors. Instead of controlling a single vertical fin, the gate surrounds multiple horizontal semiconductor channels, providing stronger control over the flow of current. This architecture enables manufacturers to improve transistor density and energy efficiency while maintaining high performance at advanced process nodes.

Evolution from FinFET to MBCFET

The transition toward MBCFET represents an important step in transistor architecture evolution.

Planar MOSFETs use a relatively flat channel structure, but as dimensions became smaller, short-channel effects and leakage became increasingly difficult to control.

FinFETs addressed many of these limitations by introducing a three-dimensional fin-shaped channel. The gate controls the channel from multiple sides, improving electrostatic control.

However, continued scaling creates new requirements for transistor performance and flexibility. GAA architectures take this further by surrounding the channel with the gate on all sides.

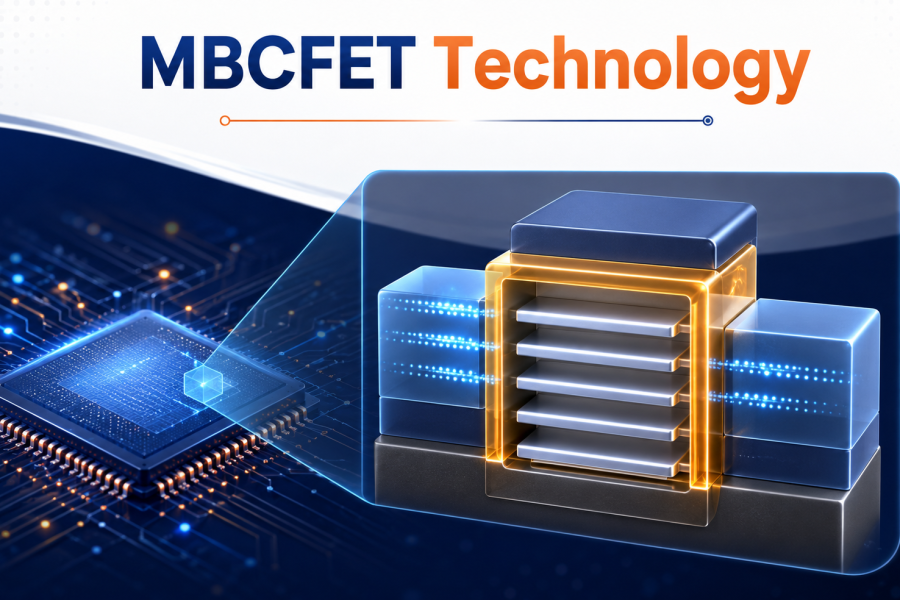

MBCFET is a practical implementation of this GAA concept, using multiple nanosheet-like channels stacked vertically. This provides a larger effective channel width within a compact footprint.

Key Advantages of MBCFET

MBCFET technology offers several benefits for advanced semiconductor manufacturing.

Improved Electrostatic Control

Because the gate surrounds the channels, it provides strong control over the channel potential. This helps reduce unwanted leakage and short-channel effects.

Better Power Efficiency

Improved gate control can reduce leakage current and support lower operating voltages, contributing to improved energy efficiency.

Higher Performance

The multiple-channel architecture can provide increased current drive, helping advanced processors and other semiconductor devices achieve higher performance.

Greater Design Flexibility

The number and dimensions of nanosheets can be optimized to achieve different transistor characteristics. This allows engineers to balance performance, power, and area according to application requirements.

Continued Scaling

MBCFET provides a pathway beyond FinFET-based architectures, making it an important technology for advanced semiconductor process generations.

Manufacturing and Integration Challenges

Although MBCFET offers significant advantages, manufacturing the architecture introduces new technical challenges.

Creating vertically stacked nanosheets requires highly controlled deposition, patterning, etching, and selective material removal processes. The dimensions of the channels, spacing between sheets, gate formation, and source/drain structures must be precisely controlled.

Manufacturers must also manage challenges such as:

• Nanosheet thickness and dimensional variation
• Selective etching and channel release
• Gate-stack formation
• Source/drain integration
• Contact resistance
• Process variability
• Thermal management
• Yield and manufacturing complexity

At advanced technology nodes, even small variations in these structures can influence transistor performance and reliability. Consequently, process control and metrology become increasingly important.

The Future of MBCFET Technology

MBCFET represents a major transition in transistor architecture as the semiconductor industry moves beyond traditional FinFET scaling. Its combination of strong gate control, tunable channel width, improved energy efficiency, and high performance makes it well suited for advanced logic technologies.

The technology is particularly relevant to demanding applications such as high-performance computing, artificial intelligence accelerators, mobile processors, and advanced data-center systems, where performance per watt is becoming increasingly important.

As semiconductor processes continue to evolve, MBCFET technology will remain an important foundation for transistor scaling. Further innovations in nanosheet engineering, gate materials, device architecture, interconnects, and manufacturing processes will help determine how effectively this architecture can support future generations of semiconductor devices.

Conclusion

The move from planar MOSFETs to FinFETs and now to GAA-based MBCFETs demonstrates how transistor architecture continues to evolve in response to scaling challenges. By surrounding multiple nanosheet channels with the gate, MBCFET delivers improved electrostatic control and provides engineers with greater flexibility in optimizing performance, power, and area.

MBCFET is more than a new transistor structure it is an important step toward enabling the next generation of energy-efficient, high-performance semiconductor technologies.
